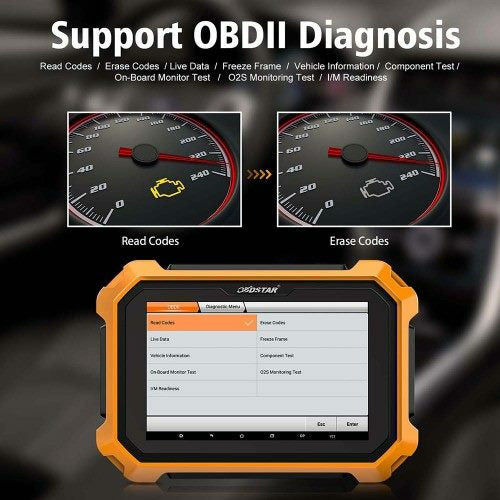

OBDSTAR X300 DP PLUS C CONFIGURATION SCAN TOOL ECU CLONE, IMMO, SPECIAL FUNCTION

OBDSTAR X300 DP Plus C Configuration Scan Tool ECU Clone, IMMO, Special Functions

This device is a new android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.



Hardware Advantages

1. Built-in VCI box
2. 8-inch touch screen
3. Charge directly via OBD interface
4. Practical and high-end gift box
5. Industrial design with silicone case
6. Back bracket design: prop on the steering wheel or stand on the table 7. With TOYOTA simulate key 1
8. P001 programmer: EEPROM adapter + RFID adapter + key renew adapter
9. Add the clip of reading SOP 8 PIN EEPROM
10. C001/C002 circuit board to read and write chip data with welding 11. IMMO induction coil to detect the key induction coil failure of the vehicle
12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Software Advantages

IMMO:
1. EEPROM

2. Renew key

3. Key programming

4. Remote programming
Cluster calibrate: wild vehicle coverage, pls check the Carlist Diagnosis: realize all vehicle systems diagnosis

Special Functions

TPS/ABS/EPB/DPF/TPMS/SRS reset/fuel injector/gear Learning/battery matching/ECU programming/throttle matching/
Oil/service reset/steering angle reset/remote manual setting/electronic steering reset/CVT learning/value reset

ECU Clone

1. ECU clone, means ECU duplication.
The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.
2. Clone directly when replacing a new or a used ECU.
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD.
3. Three features for ECU clone.
A. Free of 4S online



Break monopoly from 4S, benefiting automobile maintenance industry B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

Add “Help”Functions

1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams etc

2. Carlist and upgrade announcement, all details are available on the device

3. Customers can look up the features or uniquely support functions on the device
4. Help notes: built-in help notes for each model or function
5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

CONFIGURATIONS
A Package:
Immobilizer +special function(EEPROM+ key renewing) adapter(P001 programmer +C001 circuit board +C002 circuit board +W001 cable +W002 data cable +W003 data cable +TOYOTA smart key emulator) +others(ignition coil +remote tester)

B Package:

Immobilizer +special function(EEPROM +key renewing) +mileage correction +adapter(P001 programmer +C001 circuit board +C002 circuit board +W001 data cable +W002 data cable +W003 data cable +TOYOTA smart key emulator) +others(ignition coil +remote tester)



C Package:

Immobilizer +mileage correction +diagnosis +special function (oil reset +ABS +battery matching +ECU programming +EPB +throttle programming +airbag reset +TPMS +steering angle reset +OBDII +DPF + injector code +supension matching +gear learning +CVT learning +EEPROM +key renewing +ECU cloning) adapter (P001 programmer +C001 circuit board +C002 circuit board +W001 data cable +W002 data cable +W003 data cable +TOYOTA smart key emulator) +others (ignition coil +remote tester)
