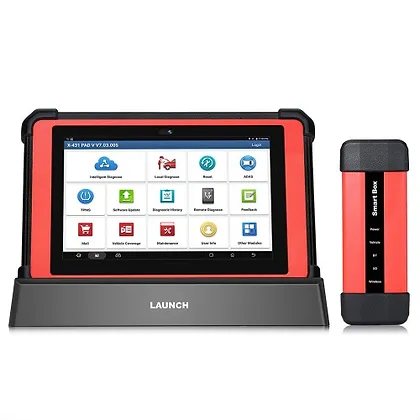

Launch X431 PAD V (PAD 5) Universal Diagnostic System with Smart Box 3.0
X431 PAD V is Launch’s latest top-end car comprehensive diagnostic scan tool based on the Android 7.1 system. It inherits Launch’s many advantages in car fault diagnostic technologies, including large car model coverage, powerful functions, a large number of special functions, and accurate test data. With it’s new advanced Smrtbox 3.0, X-431 PAD V could diagnose the passenger and heavy duty vehicles (software and adaptors are optional) with one single dongle. And to make it better, it also have the built-in J2534 adaptor to make the X-431 PAD V one of the most powerful scan tool in the market.
- Topology Mapping
- Real-time Voltage Display
- ADAS calibration Supported
- Advanced ECU programming & coding
- VW & Audi Guided Functions
- Compatible with J2534 & DoIP
- Auto OBDII Port Pin Detection
- 26 Bi-directional Special Service Functions (TPMS，ADAS system calibration, 4GB RAM+ 64GB ROM (can extend up to 128GB)
- supports LAUNCH extension module applications for oscilloscopes, sensors, endoscopes, multimeters, and battery detection etc.
1. Android 7.1 customized system, Qualcomm 8-core processor, 10.1 inch capacitive touch screen, support QC3.0 fast charging.
2. 2.4GHz & 5GHz Dual-Frequency Wi-Fi, the transmission rate is faster than the previous generation.
3. Support commercial vehicle and passenger car diagnose, Support J2534, CAN FD, DoIP.
4. Wide mode coverage, powerful and a large number，of diagnostic functions, and accurate test data.
5. Brand new industrial design, with soft rubber sheath on the four corners of the product, to effectively prevent collision; damping shaft, free adjustment of nearly 180 degrees; support three modes of hanging, support and normal.
6. Full vehicle system coverage for over 110 brands in the world, which is continually updated
7. Full-function scan tool for both 12V cars and 24V 36V heavy duty (heavy duty need to purchase additional software)
8. Online Programming:
BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru
LAUNCH X431 PAD V supports SCN coding until the 2020 model!
Italian English Chinese German Japanese Russian French Spanish Portuguese Polish Turkish Dutch Greek Danish Arabic Korean Persian Finnish Swedish Romanian Czech Hungarian
Free Update online for 2 years.
11. Support some car makes coverage till 2021+, incl. BMW, Benz, VW, Audi, GM, Ford, Chrysler, Toyota, Nissan, Honda, Land rover etc
12. X431 PAD V Supports PEV (pure electric vehicle), other launch x431 device supports Hybrid cars , but do not support PEV.
1. Comprehensive diagnosis: Support full-make, full-system, full-function rapid diagnosis, read DTC, clear DTC, read data stream, actuation test, etc.
2. Intelligent diagnose: Support intelligent VIN identification and cloud-based diagnostic record query, making the diagnostics more intelligent and efficient.
3. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
4. Remote diagnose: Support online real-time communication and remote diagnostic service through text, picture, and file between device and device, and between device and remote desktop, with low network bandwidth and system resources occupancy.
5. Special function: Support total 16 special functions, including service lamp reset, throttle adaptation, steering angle reset, brake pad reset, tire pressure reset, anti-theft matching, ABS bleeding, battery matching, gear learning, injector coding, DPF regeneration, sunroof initialization, headlamp matching, suspension matching and AT matching, EGR Adaption.
6. Software upgrade: Support one-click upgrade of operation system, client side, car model software and firmware.
7. Diagnostic feedback: For model software and function errors met during the use, please submit the feedback immediately. LAUNCH will response as soon as possible.
8. My report: View comprehensive diagnostic report, remote diagnostic report, and data stream playback.
9. Settings: Contains my connector, diagnostic connector connection management, connector activation, firmware repair, etc.
10. Extended module: Support oscillograph, sensor, battery test, endoscope, Wi-Fi printer, etc.
11. Guided function for VW and Audi
12. 26 special service functions available
13. ADAS calibration function is optional
14. Support USB Type C & Type A
1. In-depth diagnostics: Supports system diagnostics, full special functions, reading and clearing errors, viewing data stream, activating the system on the vehicle, ...
2. Smart diagnostics: Automatically identify VIN and check information on the server, making diagnostics smarter and more efficient.
3. Local diagnostics: When there is no internet, the manual vehicle selection is also very easy.
4. Remote diagnosis: using Teamviewer software to connect the Garage with technicians for technical support.
Active Test (Bi-directional Control)
Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.
ECU Coding (Online Coding)
Match, learn, or code the newly replaced ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs or replacements
Processor 8 core Cortex-A53 2.0GHz Cache 4GB Hard Disk 64GB, 128G extended System Android 7.1 Screen 10.1 inch full-fitting, sunlight readable screen (Gorilla Glass) Resolution 1920*1200 Wi-Fi Support 2.4GHz&5GHz dual frequency Camera Rear13 Megapixels, front 8 Megapixels Diagnostic Mode Wi-Fi Work Temperature -10 ~ 50℃ Dimension 320×211×46mm
Smart Box 3.0, the new VCI with Linux system, supports USB, Bluetooth and WiFi connection, is comptibnle with CANFD, DoIP, J2534 and other diagnostic protocols. More powerful functions to be discovered by working with X-431 PAD V.
The VCI "SmartBox3.0", which can only be used with PAD V, supports up to 36 volts.
Smart box 3.0 supports heavy-duty, medium-duty, light trucks. (Require extra software payment for heavy-duty models)
Smart box 3.0 covers all diagnostic protocols, J2534, D-PDU, RP1210, CAN FD, DoIP.
Support J2534/RP1210/D-PDUdiagnostic standard, can be used alone with part of the original diagnostic software.
. S2-2 Sensor box
. VSP-600 Video scope
. BST360 Battery tester
. O2-1 Scope box
. X-431 TSGUN
. WiFi printer
Passenger vehicles (12V):
1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/Dacia, Fiat/Romeo/Abarth/Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng(Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo
Heavy Duty Truck Vehicles (24V) (Need to Purchase Heavy Duty Software):
- Nissan (Diesel)
- Mitsubishi (Diesel)
- USA Ford Diesel, Kenworth
- Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
- Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
- Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
- WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
- Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
- Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
- Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
- HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
- IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
- Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
