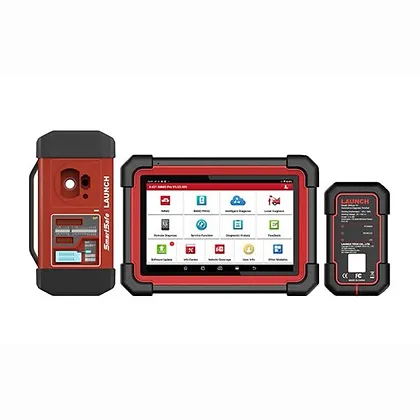

Launch X431 IMMO Pro Key Programming & Intelligent IMMO Diagnostic Tool (2025)
Intelligent Diagnostics
Intelligent Diagnostics
1. Intelligent diagnostics includes read/clear DTCs, live data streaming, bi-directional control, special functions, etc.
2. Support CAN FD and DoIP* communication protocols.
3. 10 advanced service functions.
4. Pre-scan and post-scan diagnostic report.
5. Wireless and wired diagnostic.
6. One-stop Info Center includes vehicle repair information and latest updates.
7. Support diagnostic history reviewing.
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.
Functions
1. Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Anti-theft modules replacement
Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
3. Anti-theft password reading
Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.
4. Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc
Specifications
X-431 IMMO PRO Tablet
Processor
2.0GHz, Quad-Core
Operation System
Android 10.0
Memory
4GB
Storage
64GB
Battery
47.88Wh (7.6V,6300mAh)
Display
8', 1280*800
Camera
Rear 8MP
WIFI
2.4GHz / 5GHz
Interface
TYPE A *1 & TYPE C*1
Work Temperature
0~50℃
Dimension
234 x 166 x 39.5mm
DBSCar VII
Working Voltage
DC 9 – 18V
Working Temperature
0~50℃
Communication
Bluetooth
Indicators
Power
ON: Connect to a vehicle
Vehicle
Blink: When VCI is communicating with vehicle’s ECU
IO
Blue: Bluetooth communication between vehicle and VCI
Red: Wired USB communication between vehicle and VCI
Dimension
118.3 x 69.5 x 32 mm
X-PROG3
Interface
DB26, DB15
Input Voltage
DC12V
Input Current
500mA
Working Temperature
0-50℃
Storage Temperature
-20-70℃
Vehicle Key Slot
To place car key for RF defection
DB26
Used to connect to each anti-theft cables
Infrared Slot For Benz Key
Used to place the Mercedes-Benz infrared key to perform the key matching function
Key IC Hole
Used to place the key chip to perform the key matching function
Status Indicator
Power supply indicator lamp
DIY Slot
Used to connect the anti-theft ECU pin through the cable to read and write data
Locker
To tighten loose EEPROM board
DC 12V
Used to connect to the DC12 power supply
DB15
To connect with vehicle's DLC
EEPROM Slot
To insert EEPROM board
